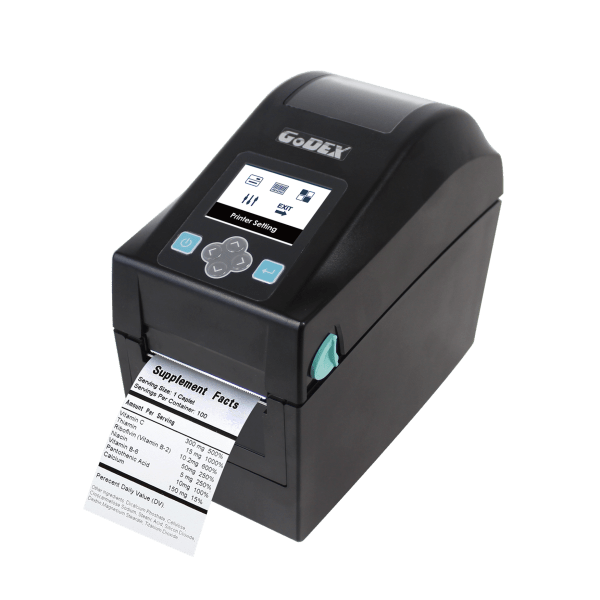

DT200i / DT230i

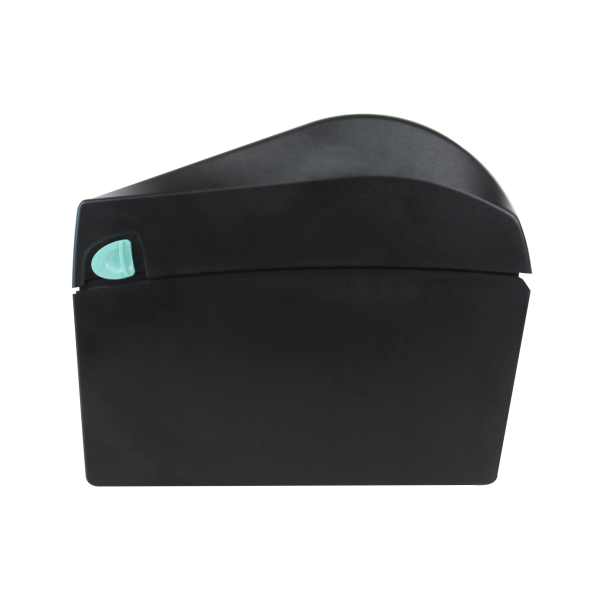

DT200i / DT230i - Image 2

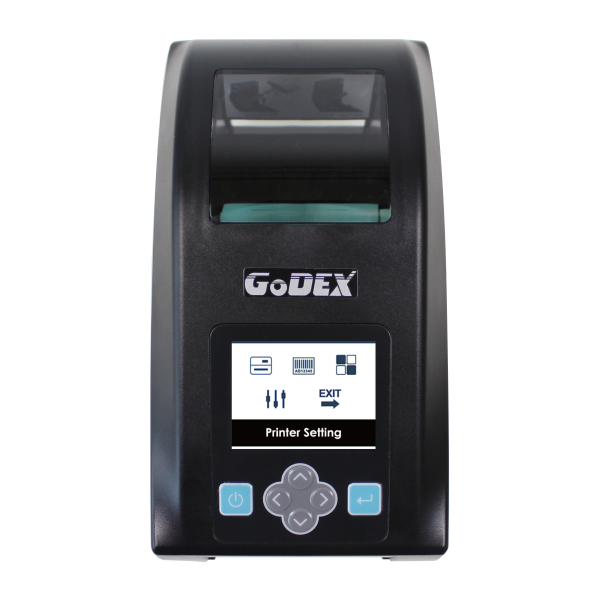

DT200i / DT230i - Image 3

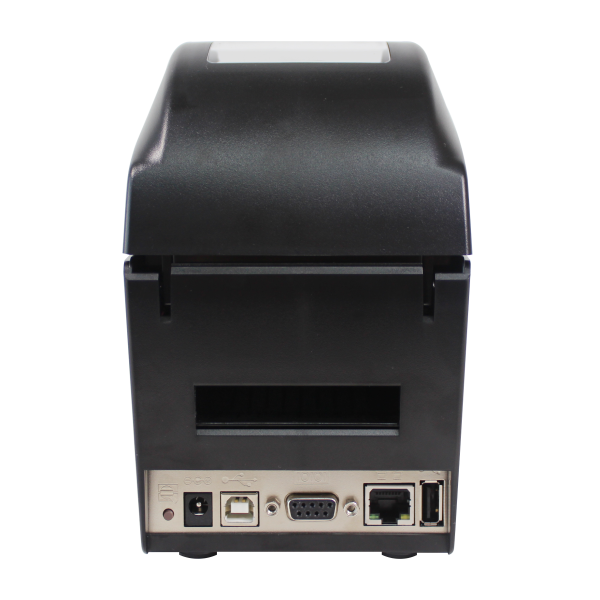

DT200i / DT230i - Image 4

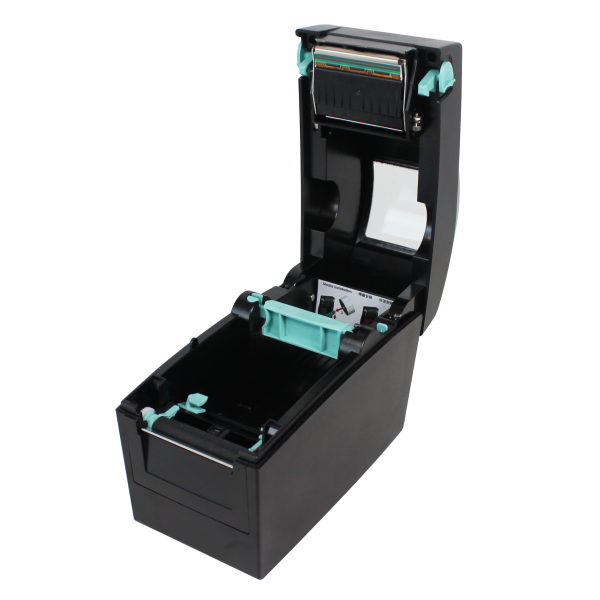

DT200i / DT230i - Image 5

DT200i / DT230i

$10.00

Small in Size. Powerful in Function.

The DT200i series is an ingenious design that brings several functions into one platform. It supports 203dpi or 300dpi printing resolution and offers an optional 2.4-inch color display for ease of use. A full line of optional accessories is available and the DT200L supports linerless media printing. All your needs can be satisfied with this series.

3 Years Warranty

  • Supports 203 dpi / 300 dpi printing resolution
  • Small footprint with a wall-mountable design for space optimization
  • The innovative easy-to-use auto-calibration button facilitates media
    detection and positioning
  • Adjustable TPH print line to optimize printability
  • Multiple connection interfaces for multiple applications
  • Optional wireless connectivity: Bluetooth or Wi-Fi module
  • Supports various types of media, including linerless media with the
    DT200L Linerless models.
  • External media stand available to satisfy large printing projects
    (not compatible with Linerless models)
  • USB host for memory extension and standalone operation
    (LCD models only)
  • 2.4” color LCD for easy and intuitive operation (LCD models only)

Brochure

Category:

Description

Specs
Print Method
Direct Thermal
Resolution
203 dpi (8 dots/mm) / 300 dpi (12 dots/mm)
Print Speed
7 IPS (178 mm/s) / 5 IPS (127 mm/s)
Print Width
2.12” (54 mm) / 2.24” (57 mm)
Print Length
Min. 0.16” (4 mm)**;Max. 68” (1727 mm) / Min. 0.16” (4 mm)** ;Max. 30“(762 mm)
Processor
32 Bit RISC CPU
Memory
Flash: 128 MB (60 MB for user storage) SDRAM: 32 MB
Interfaces
• USB 2.0 • Serial port: RS-232 (DB-9) • Ethernet 10/100 Mbps • USB Host (A-Type)
Ribbon
N/A
Control Panel
• Color TFT LCD with navigation button • Power on/off button • Calibration button • Control key: FEED
.
