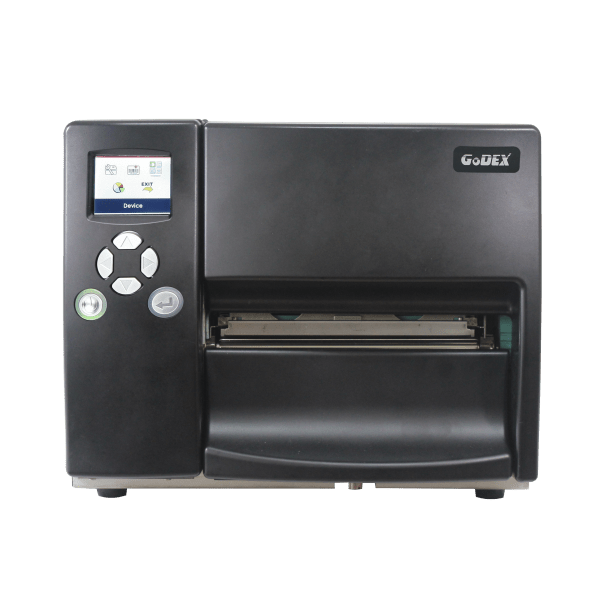

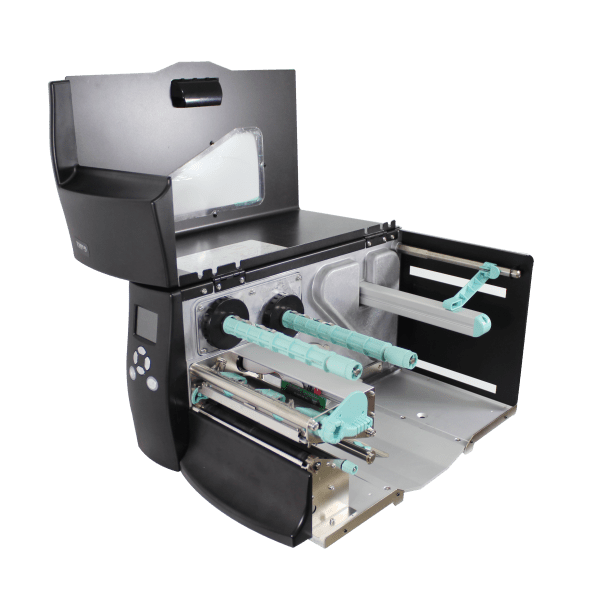

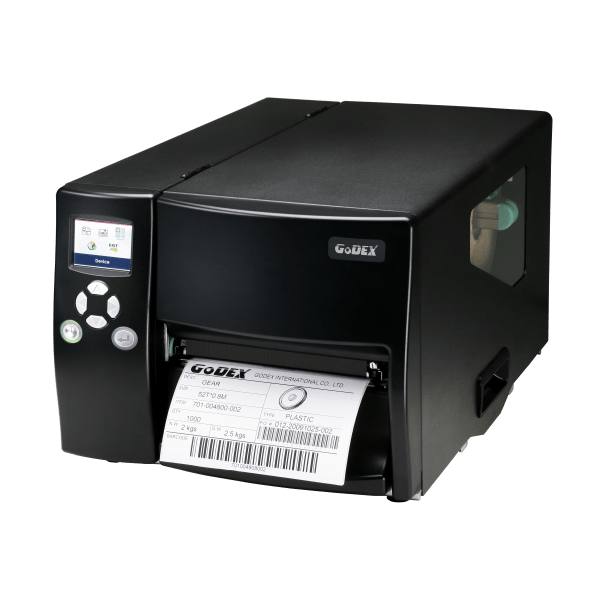

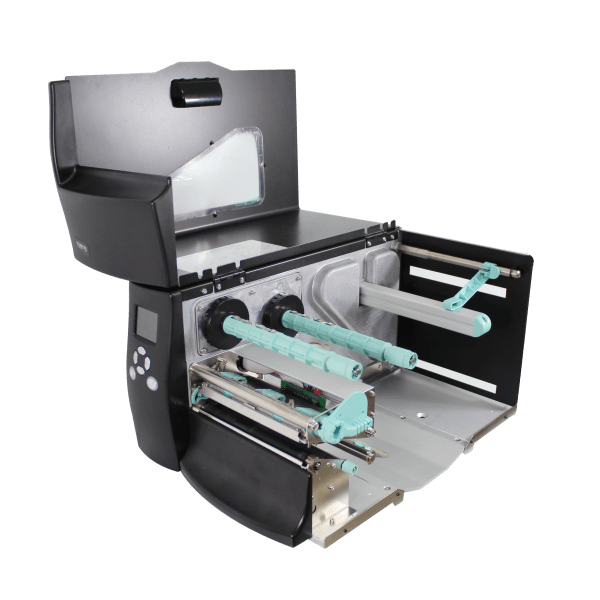

EZ6250i / EZ6350i

$2,095.00

Upgraded Robust 6″ Industrial Printer

EZ6250i which has faster printing speed to reach 7 IPS for 203 dpi resolution, Larger flash memory to 8 MB and build in USB host to support various applications.

  • Available for 203 dpi (8 dots/mm) and 300 dpi (12 dots/mm) resolution
  • Intelligent Color LCD panel for easy configuration.
  • Robust metal casing and a solid print mechanism to take on heavy duty jobs
  • Calibration button makes label Calibration simple and fast
  • Multiple interfaces for multiple requirements
  • USB Host for extension memory and standalone operation
  • Automatic self-adjustment for coated inside/outside ribbons
  • Supports 450 meter ribbon capacity and 8 inch diameter label (3″core)
  • Available for bulk printing.
  • Modular TPH easy to do the maintenance

Brochure

Category:

Description

Specs
Print Method      Thermal Transfer/Direct Thermal
Resolution            203 dpi (8 dot/mm) / 300 dpi (12 dot/mm)
Print Speed           7 IPS (177 mm/s) / 5 IPS (127 mm/s)
Print Width           6.61” (168 mm)
Print Length          Min. 0.16” (4 mm)** ; Max. 70” (1778 mm) / Min. 0.16” (4 mm)** ; Max. 30” (762 mm)
Processor                32-bit RISC CPU
Memory                   Flash 8 MB Flash (4 MB for user storage) SDRAM 32 MB

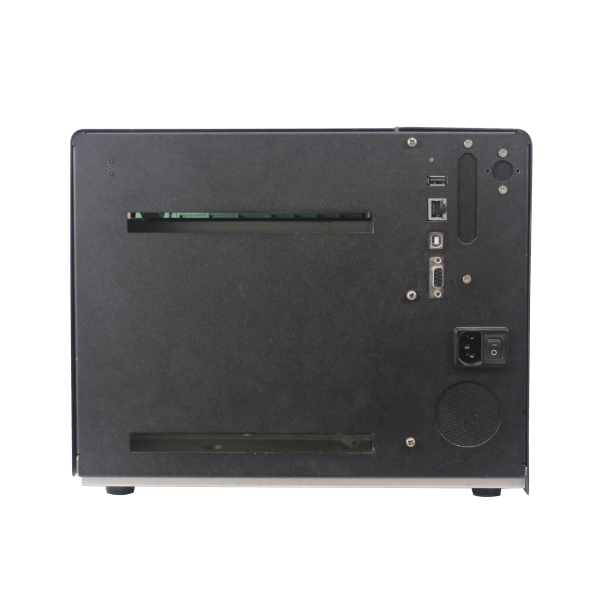

Interfaces                • USB 2.0 (B-Type) • Serial port: RS-232 (DB-9) • IEEE 802.3 10/100 Base-Tx Ethernet port (RJ-45) • USB Host (A-Type)
Ribbon                      Length Max. 1471′ (450 m) Width Min 2.36” – Max. 6.85” (60 mm – 174 mm) Ribbon roll diameter 2.99” (76 mm) Max Core diameter 1” (25.4 mm)
Control Panel            • Color TFT LCD with navigation button • Calibration button • Power on/off button
