GX4200i / GX4300i / GX4600i

$2,495.00

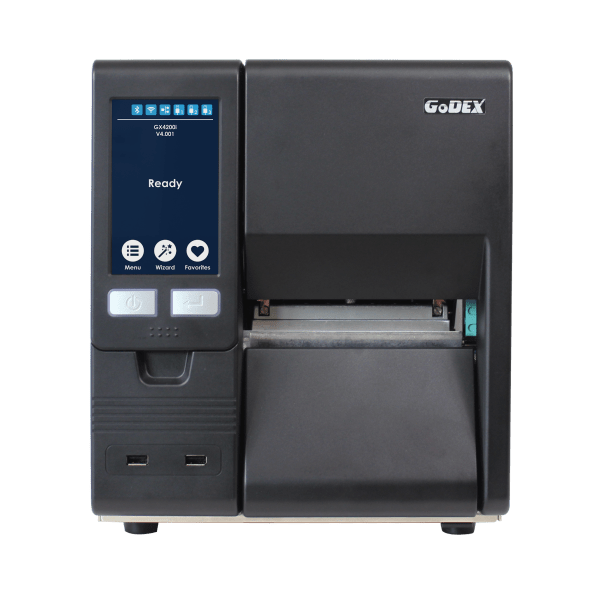

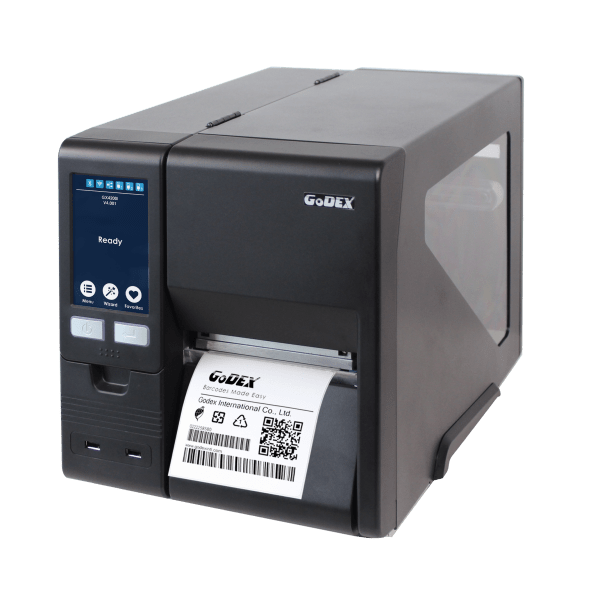

Ultra-high speed Industrial Thermal Printer with an intuitive 5” video touch screen

The GODEX GX4000i, in its 600 dpi version, produces razor sharp results while maintaining the fastest 600 dpi throughput at 8 IPS. The GX4000i comes fully equipped to support your most demanding applications. With a robust steel design, the GX4000i will thrive in all environments.

  • Speed ​​and Quality-The GoDEX GX4000i, in its 600 dpi version, produces razor sharp results while maintaining the fastest throughput in the industry at 8 IPS.
  • Fully Loaded-Brimming with 256MB of flash memory, the GX4000i has more than enough storage for 1000’s of labels, fonts and/or images, making standalone functionality far more flexible.
  • Intuitive-Equipped with a 5” LCD touch screen and 16GB of storage the GX4000i offers intuitive controls and functionality.
  • Video assist-With built-in video assisted guidance, printer operation has never been easier.
  • Favorites & Icons-Have a preferred setting? The GX4000i offers the ability to save your favorite settings within a central, convenient location.
  • Upgradable resolution-Need a higher resolution printer? No problem. Easily upgrade the printer’s resolution with a simple printhead swap from 203, to 300, to even 600 dpi.

Brochure

Category:

Description

Specs
Print Method      Thermal Transfer/Direct Thermal
Resolution           203dpi (8 dot/mm) / 300dpi (12 dot/mm) / 600dpi (24 dot/mm)
Print Speed          Up to 16 ips (406 mm/s) / Up to 12 ips (305 mm/s) / Up to 8 ips (203 mm/s)
Print Width          4.09” (104mm) / 4.09” (104mm, up to 105.7mm) / 4.09” (104mm, up to 105.6mm)
Print Length         Min. 0.16” (4 mm)** Max. 279.53” (7100 mm) / Min. 0.16” (4 mm)** Max. 125.98” (3200 mm) / Min. 0.16” (4 mm)**Max. 31.50” (800 mm)
Processor               32-bit RISC CPU
Memory                  256MB Flash; 256MB SDRAM 16GB for display

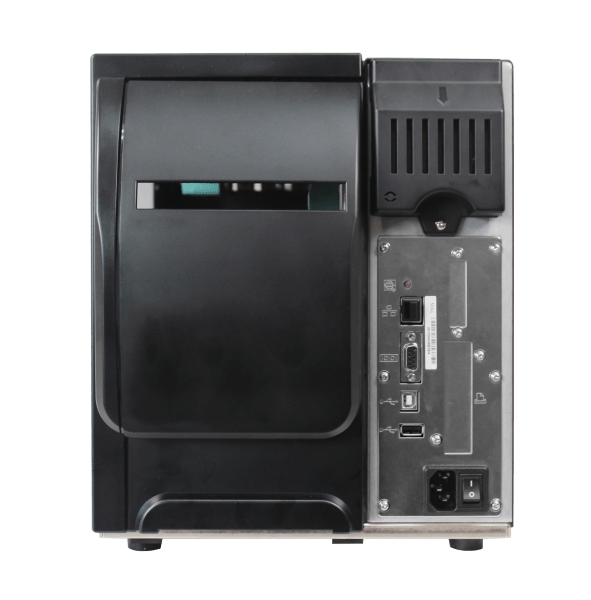

Interfaces               • USB 2.0 (Type B) • Serial port (RS-232) • Ethernet 10/100 Mbps (IEEE 802.1X ‒ TBD) • 3 USB Host ports (A-Type). 2 ports at the front panel, 1 port at the rear panel
Ribbon                     • Types: Wax, wax/resin, resin • Length: Max. 1476′ (450 m) • Width: Min. 1.18” (30 mm) ‒ Max. 4.33” (110 mm) • Ribbon roll diameter: 3” (76.2 mm) • Core diameter: 1” (25.4 mm)
Control Panel          • Backlight 5” touch screen LCD supports on-board videos • 1 Power on/off button with blue color LED backlight • 1 Control key: FEED/PAUSE/CANCEL with three color LED backlight : Ready (Blue); Error (Red); Calibration (Green) • 1 Calibration button
