Description
Specs
Print Method
Thermal Transfer / Direct Thermal
Resolution
203 dpi (8 dots/mm) / 300 dpi (12 dots/mm)
Print Speed
Up to 7 ips (178 mm/s) / Up to 5 ips (127 mm/s)
Print Width
4.25” (108 mm) / 4.16” (105.7 mm)
Print Length
Min. 0.12” (3 mm)** ; Max . 400” (10,160 mm) / Min. 0.12” (3 mm)** ; Max. 350” (8,890 mm)
Processor
32 Bit RISC CPU
Memory
16 GB Flash / 512 MB SDRAM

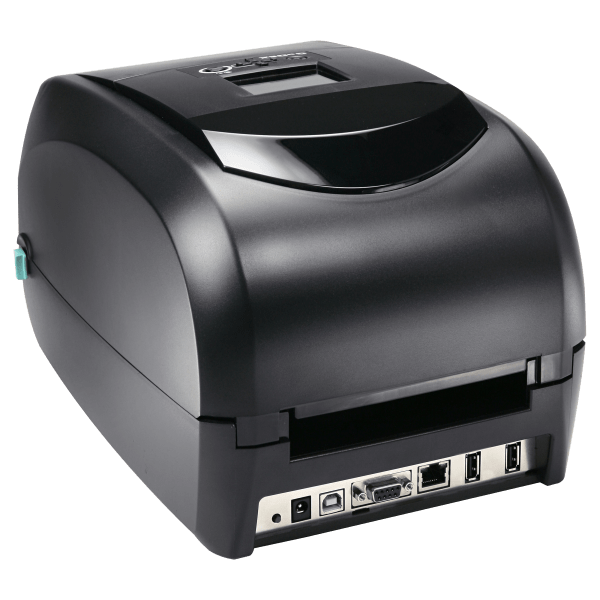

Interfaces
• USB 2.0 (Type B) • Serial port (RS232) • Ethernet 10/100 Mbps • USB Host x 2 (Type A)
Ribbon
Wax, wax/resin, resin : Max. 984” (300 m) Length / Min. 1.18” (30 mm) – Max. 4.33” (110 mm) Width / 2.67” (68 mm) Ribbon roll diameter / 1” (25.4 mm) Core Diameter

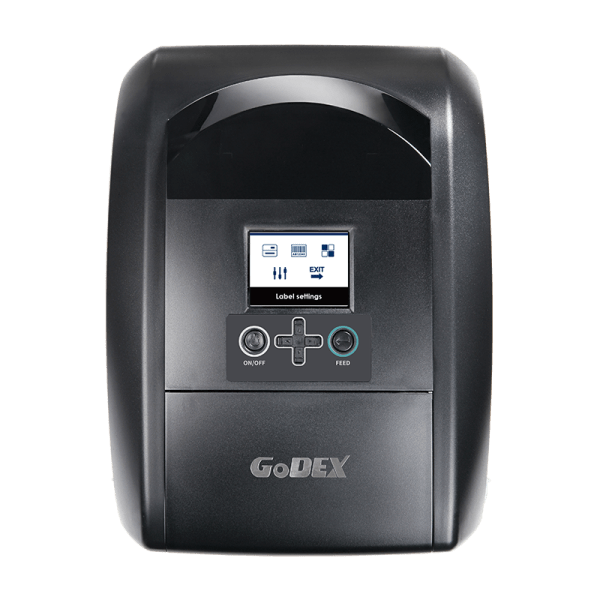

Control Panel
• Color TFT LCD with navigation button • Power on/off button • Control key: FEED • 1 Calibration button at rear panel
