Description
Specs
Print Method
Thermal Transfer / Direct Thermal
Resolution
203 dpi (8 dots/mm) / 300 dpi (12 dots/mm) / 600 dpi (24 dots/mm)
Print Speed
Up to 8 ips (203 mm/s) / Up to 6 ips (152 mm/s) / Up to 4 ips (102 mm/s)
Print Width
4.25” (108 mm) / 4.16” (105.7 mm) / 4.16” (105.7 mm)
Print Length
Min. 0.12” (3 mm)** ; Max . 279.53” (7100 mm) / Min. 0.12” (3 mm)** ; Max. 125.98” (3200 mm) / Min. 0.12” (3 mm)** ; Max . 31.5” (800 mm)
Processor
32 Bit RISC CPU
Memory
Flash 128 MB SDRAM 128 MB
Interfaces

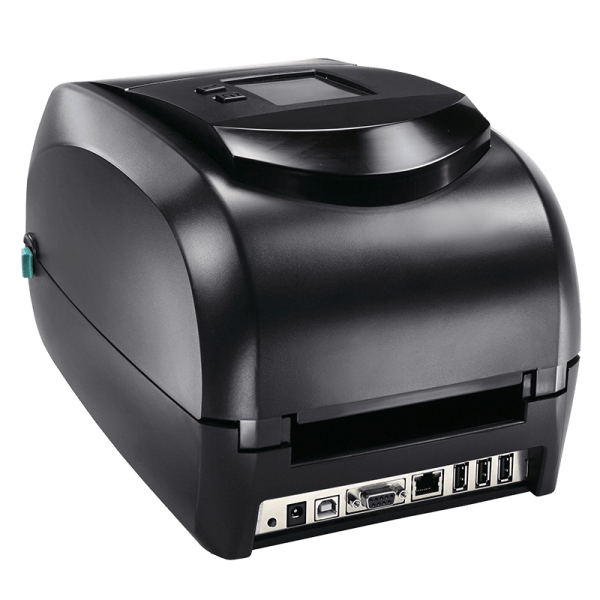

• USB 2.0 (Type B) • Serial port (RS232) • Ethernet 10/100 Mbps • USB Host*3 (Type A)
Ribbon

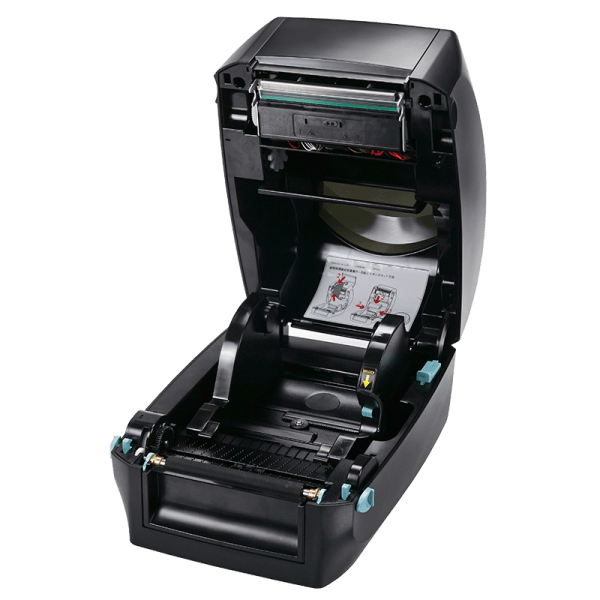

• Length 984” (300 m) • Width Min. 1.18” (30 mm) – Max. 4.33” (110 mm) • Ribbon roll diameter 2.67” (68 mm) • Core diameter 1” (25.4 mm)
Control Panel

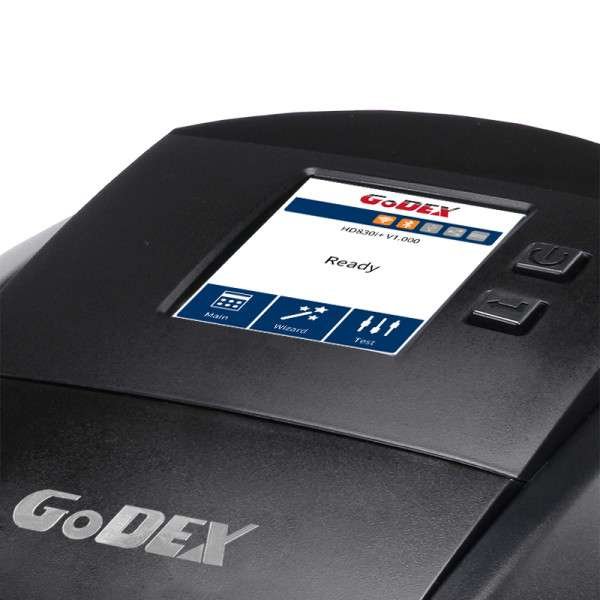

• Backlight 3.2″ Touch Screen LCD • Calibration button • Control Key : FEED • Power on/standby button
